Portable/Laboratory Density Meter DM-250.5
- Direct density measurement
- Record level density and average per tank
- Automatic temperature compensation
- ATEX Hazloc certification
- Safe operation, low maintenance
- Economical and easy to operate
- Measures highly viscous liquids up to 2000 cP
- Local results storage and BLuetooth data transfer
- OLED Display
|DM-250.5 consists of a Density sensor DS-200 and a temperature sensor connected to an electronic block. Density sensor is made from SS316 stainless steel, which allows it to be used in all liquid oil products and non-aggressive chemicals.
There are also several material options for measurement of the aggressive substances such as Hastelloy C 22 and a PTFE coating.
The electronic block is housed within a Stainless Steel body which preserves it from the elements. It also has a large weather-proof OLED display.

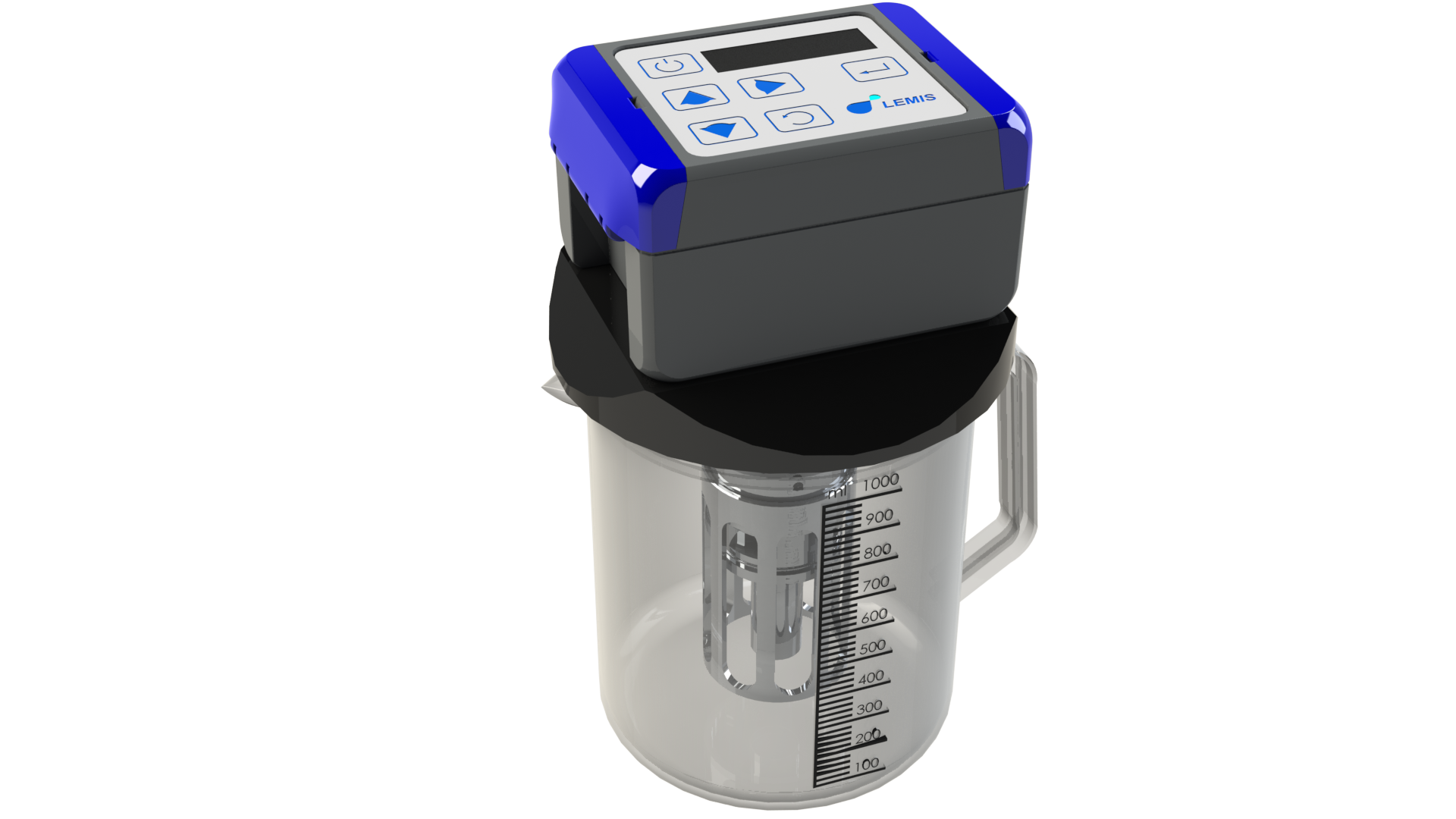

The operation is simple – a lab worker fills a standard laboratory 1000 ml beaker with a sample and submerges the DM-250.5 sensor in the sample. Press the “ON” button and within seconds the real time Density and Temperature readings will be displayed on the OLED screen.
DM-250.5 also has an option to display relative Density at 15 C, 60 F, etc. The user can set up any measuring units for Density and Temperature too.
DM-250.5 is delivered in a compact carrying case, which enables to user to comfortably travel for any in-field measuring needs.
DM-250.5 is powered by a re-chargeable accumulator that eliminates the need to purchase any replacement batteries. Work time of a fully charged battery is approximately 40 hours.
The received data can be easily sent via Bluetooth to any nearby device – PC, tablet or portable printer.
ATEX II (2G) EEex ib [ia] IIB T4 certification allows the user to conduct the measurements directly in Ex-zones.
DM-250.5 is a new unique, compact, precise, easy to operate and very budget friendly must-have device for your Density measuring needs!
Here are the recommended fields of application:
- Custody Transfers
- Tank farms
- Tank Trucks
Recommended for these products:
- All petrochemicals
- Caustic, alkalis
- Spirits and distilled spirits
All technical characteristics of the DM-250.5 you can find in brochure.
